Pit Shot®
Directional Drill
Compact HDD for Utility Service Installation

The Pit Shot® Directional Drill is a compact, pit-launch horizontal directional drilling system engineered for utility service work where surface-launch drills cannot operate. Designed for tight or restricted jobsite conditions, the Pit Shot® installs 1″ to 6″ pipe with exceptional accuracy—ideal for sewer laterals on grade, water service lines, and conduit installations. Built with a rugged frame and precision-engineered components, the Pit Shot® delivers reliable performance in demanding underground environments.

Call for Pricing

Key Features

  • Accurate Utility Line Installation
    Designed for sewer laterals, water lines, and conduit installations where precision is essential.
  • Durable Oil-Filled Rotational Gear Box
    Ensures smooth operation, long service life, and reduced maintenance.
  • Rack-and-Pinion Carriage System
    Provides consistent thrust and pullback for controlled drilling.
  • Bolt-On Drive Chuck
    Allows quick replacement and simplified maintenance.
  • Compact Pit-Launch Design
    Ideal for locations where surface-launch HDD rigs cannot be used.

Performance Specs

Push and Pull Force

7 tons

Rotational Torque

1100 ft lbs

Rotational Speed

100 rpm

Suggested Hydraulic Flow Rate

15-20 gpm

Weight

692 lbs.

Drill Range

400 ft.

Drill Stem Length

2 ft.

Dimensions

54″ x 28″ x 32″

Guidance Compatibility

  • Standard:

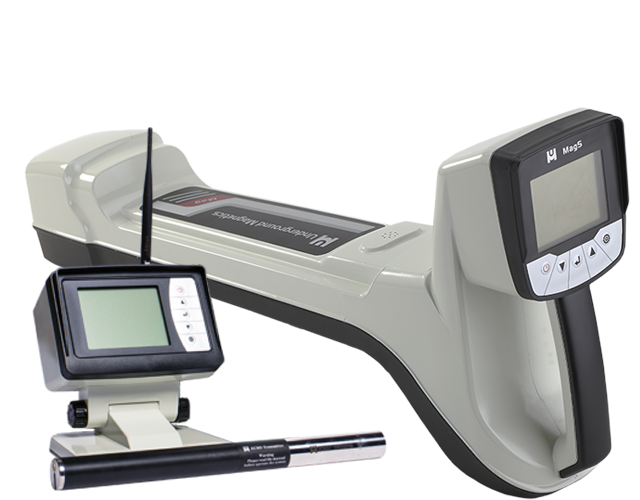

    Underground Magnetics
  • Compatible (with custom housing):
    Subsite
    Radio Detection
    D.C.I.

Powerful Pit-Launch HDD
for Sewer, Water, and Conduit Lines

  • Sewer lateral lines on grade
  • Water service line installations
  • Conduit and utility installations
  • Tight or restricted jobsite conditions where surface rigs cannot operate

Standard Pit Shot® Package

Install sewer, water, and conduit lines with the Pit Shot® Directional Drill. Compact pit-launch HDD system with 7-ton thrust, 1,100 ft-lbs torque, and 400-ft drilling range.

See Accessories


The Pit Shot® Directional Drill delivers the power, precision, and compact design needed for today’s underground utility installations.

To get current pricing or a custom quote, contact us at sales@roddieunderground.com
