The Pit Shot® X4 Directional Drill is a powerful pit-launch HDD system engineered for utility service work where surface-launch drills cannot operate. Designed for tight or restricted jobsite conditions, the X4 installs 1″ to 6″ pipe with exceptional accuracy—ideal for sewer laterals on grade, water service lines, and conduit installations. With a rugged frame, high-torque rotational system, and a 15,000-lb push/pull capacity, the Pit Shot® X4 delivers reliable performance in demanding underground environments.

Pit Shot® X4 Directional Drill
High-Power Pit-Launch HDD System

The Pit Shot® X4 Directional Drill is a powerful pit-launch HDD system engineered for utility service work where surface-launch drills cannot operate. Designed for tight or restricted jobsite conditions, the X4 installs 1″ to 6″ pipe with exceptional accuracy—ideal for sewer laterals on grade, water service lines, and conduit installations. With a rugged frame, high-torque rotational system, and a 15,000-lb push/pull capacity, the Pit Shot® X4 delivers reliable performance in demanding underground environments.

Call for Pricing

Key Features

  • High-Power Performance
    Generates 15,000 lbs of push/pull force for demanding trenchless installations.
  • Precision Drilling
    Ideal for sewer laterals, water lines, and conduit installations requiring accurate on-grade drilling.
  • Durable Oil-Filled Rotational Gear Box
    Ensures smooth operation, long service life, and reduced maintenance.
  • Rack-and-Pinion Carriage System
    Provides consistent thrust and pullback for controlled drilling.
  • Bolt-On Drive Chuck
    Allows quick replacement and simplified maintenance.
  • Compact Pit-Launch Design
    Perfect for locations where surface-launch HDD rigs cannot be used.

Performance Specs

Push and Pull Force

15,000 lbs

Rotational Torque

1100 ft lbs

Rotational Speed

100 rpm

Suggested Hydraulic Flow Rate

15-20 gpm

Weight

900 lbs

Drill Range

400 ft.

Drill Stem Length

4 ft.

Dimensions

75″ x 28″ x 32″
Industry-leading locating and tracking technology for accurate HDD navigation.

Guidance Compatibility

  • Standard:
    Underground Magnetics
  • Compatible (with custom housing):
    Subsite
    Radio Detection
    D.C.I.

Heavy-Duty Directional Drilling for
Sewer, Water, and Conduit Installations

  • Sewer lateral lines on grade
  • Water service line installations
  • Conduit and utility installations
  • Tight or restricted jobsite conditions where surface rigs cannot operate
The Pit Shot® X4 Directional Drill is a powerful pit-launch HDD system engineered for utility service work where surface-launch drills cannot operate. Designed for tight or restricted jobsite conditions, the X4 installs 1″ to 6″ pipe with exceptional accuracy—ideal for sewer laterals on grade, water service lines, and conduit installations. With a rugged frame, high-torque rotational system, and a 15,000-lb push/pull capacity, the Pit Shot® X4 delivers reliable performance in demanding underground environments.

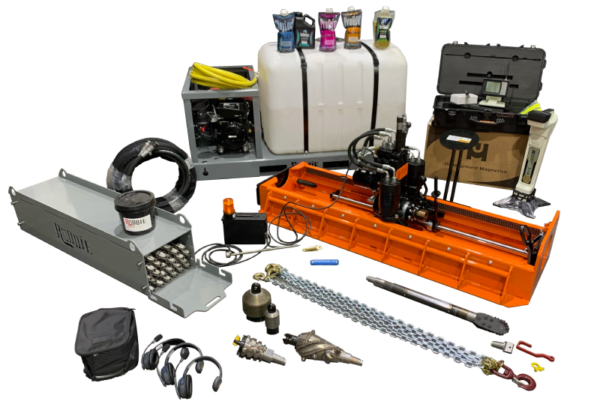

Standard Pit Shot® X4 Package

The Pit Shot® X4 delivers the power, precision, and durability needed for today’s underground utility installations.

See Accessories


To get current pricing or a custom quote, contact us at sales@roddieunderground.com
